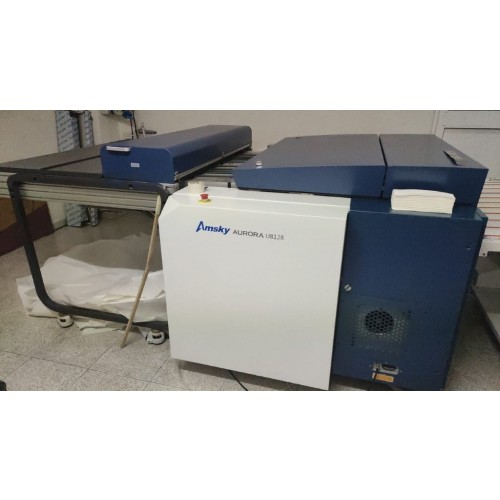

CTP Amsky Aurora U8128

CTP AMSKY AURORA U8128

-Year 2016
-Complete with plate autoloading system
-Technical details :
-Exposing Method:External Drum
-Imaging System 128-channel
-Discrete 400-410nm laser
-Output Speed 45 plates/hour ; 1,030mm×800mm 2,400dpi, 745mm×605mm 1,200dpi
-Plate Size Max.1,130×920mm, Min. 510×400mm
-Exposing Size Max. 1,130×904mm
-Plate Type UV plate, high-sensitive PS plate
-Plate Thickness 0.15mm-0.3mm
-Resolutions 2,400dpi ; 1,200dpi
-Repeatablity ±5μm(Continuous exposure over four times on the same plate with a temperature of 23°C )
-Interface USB2.0 / USB3.0
-Plate Loading autoload system
-RIP with computer and monitor, Plate stacker
-Net Weight 1,200KG
-Device Sizes: 2,010×1,410×1,200 mm (W×D×H) without Autoload system
-Power supply: Single phase:200V-240V; Power:4,8 KW
