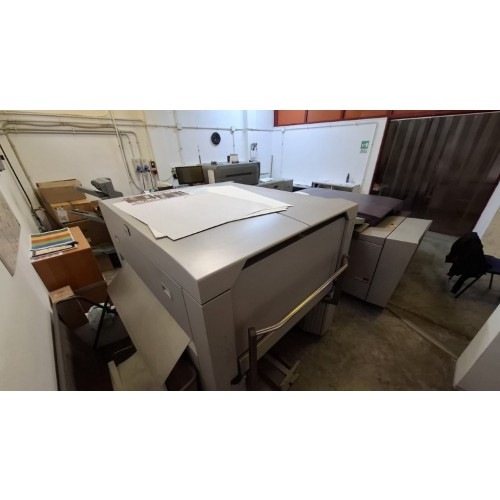

CTP Kodak Magnus Q 800 Platesetter

-Serial Number: M80100 ( September 2006 )
-Model: Kodak Magnus 800 (Quantum SquareSpot)
-Machine Configuration: SCU Autoloader max capacity 100 plates with tray, automatic paper removal and bridge connection
-Imaging Head: KODAK SquareSpot / Quantum THERMAL imaging head / GMCE
-Laser head model TH 2
-Plate Format: Supports B1 formats / minimum size 318 x 305 mm - maximum size 950 x 1163 mm
-Plate Handling / Automation: Single-cassette unit (autoloader) ; refillable during use, automatic cassette selection per job. Typical cassette capacity: up to ~100–110 plates (variable by thickness).
-Approx 120.000 plates done
-Resolution and screening: Supports common resolutions of 2400 dpi; compatible with Kodak advanced screening
-Integrated punching system
-Software/workflow integration: RIP Kodak Printconsole, Kodak Workflow server, computer and monitors included
-Available immediately
